About our Military Power Supplies

We have a standard series military power supply that was designed for military applications that required to operate in extreme temperature and environmental conditions. This series is designed to meet MIL-STDs for the use in our Armed Services - the United States Air Force, Army, Marines, and Navy. Originally, we designed custom, “full mil” power supplies which were used to develop a standard line of “military-grade” power supplies.

Our MGPS-1P series platform employs high efficiency, power factor corrected module to provide the isolated front end for this product line. The IFE incorporates an EMI filtering section designed to meet MIL-STD-461. Also incorporated into the front end is transient and surge protection designed to meet MIL-STD-704 and MIL-STD-1275. The back end utilizes high efficiency, dc to dc converters to provide the regulated DC output(s). This design allows us to easily change outputs to meet differing applications, essentially, a tailor made power supply for the OEM without the expensive NRE charges.

Like our MGPS-3P series, we designed or mil-grade power supply series is to meet MIL-STD-810, shock and vibration standards as applicable to power supplies. Typically, these are designed to meet Shock: Method 516.6, Procedure I, 20g peak, 11mS terminal peak, saw-tooth shock pulse and Vibration (Random): Method 514.5, Procedure I, Category 4 – General minimum integrity. In addition, these semi-sealed chassis are designed to prevent ingress from humidity and salt fog with outdoor environmental conditions.

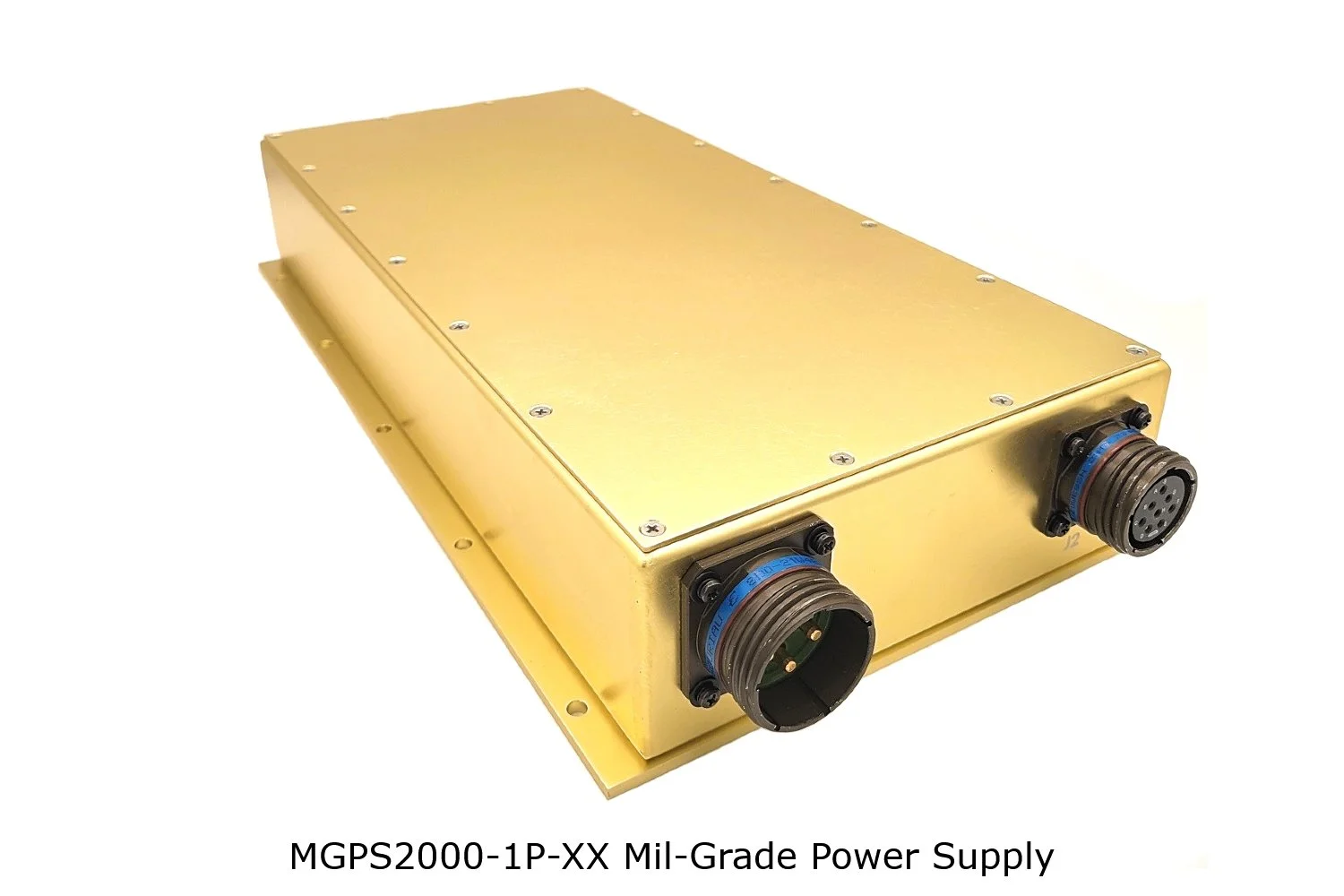

The MGPS military power supply series is conduction cooled via baseplate and can reliable operate at full rated power with a baseplate temperature from -40°C to +85°C. The baseplate is also used to mount the power supply. The standard input/output connectors for this series are the D38999 mil-circular connector; however, it can be fitted with optional D-Sub connectors. As with all of our series, this can be customized to meet a variety of applications because we can modify output voltages, connector types, power ranges, and mechanical packaging to tailor to your specific requirements.
