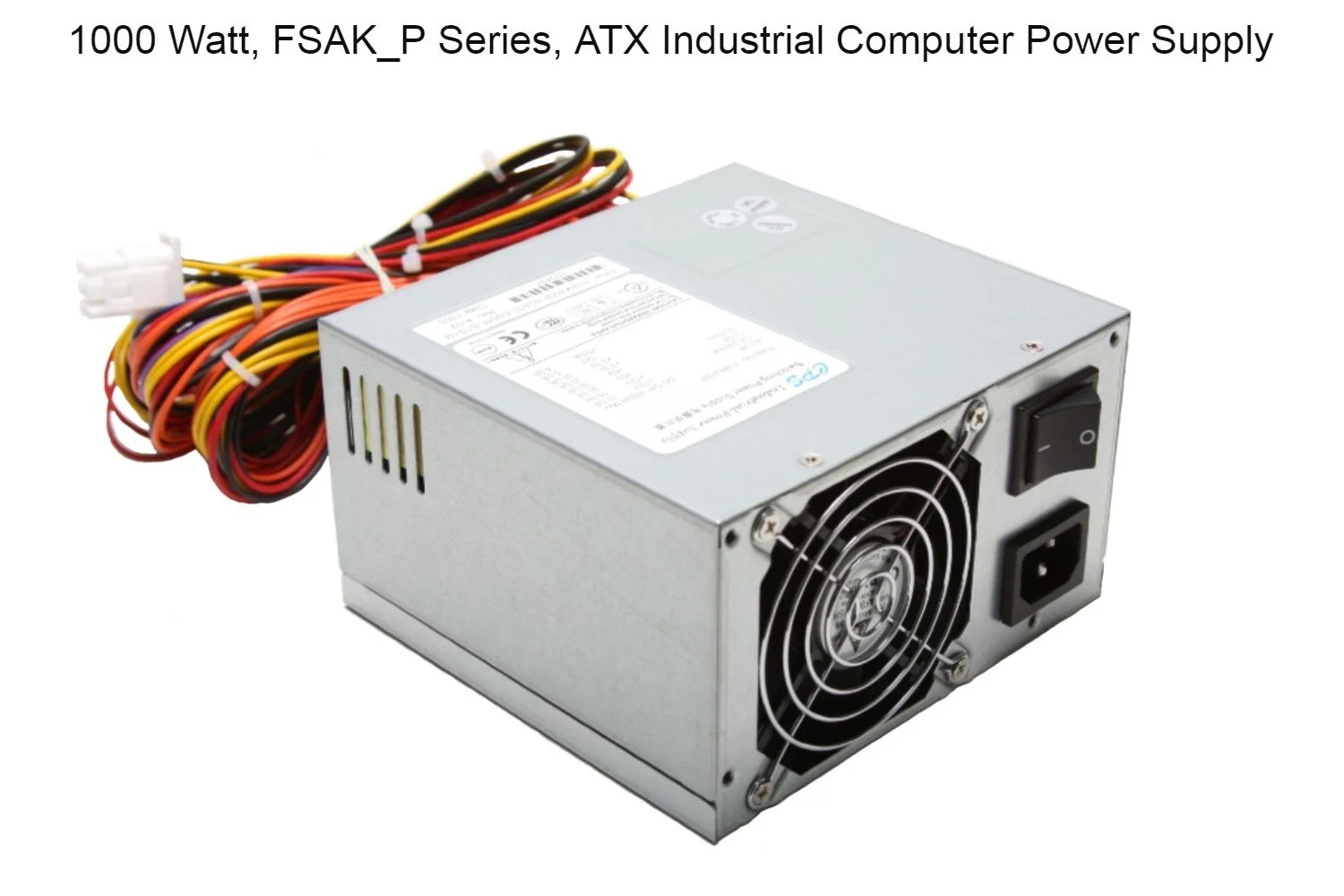

FSAK1000P-XX: 1000 Watt, ATX Industrial Computer Power Supply Product Specification
Product Description
This 1000 watt, ATX power supply has customizable outputs to provide the OEM flexibility to custom tailor output loads to better fit their system’s power needs. This unique design offers up to 8 outputs (plus 5V standby) in which outputs can be paralleled to provide increased current for individual voltage rails. There is even a 24Vdc output to meet CompactPCI and VME platform requirements.
Product Features
Configurable Outputs for Load Flexibility
Up to 8 Outputs with 5V Standby
Optional Output Voltages: 3.3V, 5V, 12V, & 24V
Industry Standard PS/2 Form Factor
AC Input
Voltage Input Range: 90-264Vac
Frequency Range: 47-63Hz
Phase: Single Phase
Typical Input Current: 105A at 115Vac input, full load
Power Factor Correction: 0.95 min @ 115Vac, full load
Typical Leakage Current: 700uA at 240Vac
FSAK1000P Output Selection Guide
Output Selection Guide Notes:
1. Total continuous combined output(s) wattage: 1000W.
2. Minimum load of 0.5A on V1, no minimum load required on other outputs.
3. Maximum combined current for V1 & V1a: 83A.
4. Maximum combined current for V2 & V3: 170W.
5. V1a is isolated from main outputs by inductor as source of system fans.
6. All output rails could be optional except got 12V (V1).
DC Output Characteristics
Set Point Accuracy: ±1.0% of Output Voltage (Nominal input; full load; 25°C)
Transient Response: Output voltage returns to within 1% in less than 2.5mS for a 50% load change and the peak transient does not exceed 5%
Overshoot: Turn-on and turn-off overshoot should not exceed 10% over nominal voltage
Holdup Time: 16mS
Electrical Characteristics
Switching Frequency: 300KHz Fixed
Efficiency: 85% min (At 20%/50%/100% load and at 115Vac nominal input)
Turn On Delay: 100 to 200mS (To nominal output voltage)
Isolation Voltage (High Voltage Withstand):
Primary to Secondary: 4242Vdc
Primary to Ground: 2800Vdc
Protection
Over Current Limit: 130% maximum for +12V output (V1) and 150% max for 3.3V & 5V outputs
Over-Voltage Setpoint: 108 to 125% of output voltage. Unit latched 1 minute, recycle AC input to reset
Short Circuit: Auto-recovery after short circuit condition is removed and cycle ON/OFF to reset
No-load Operation: No damage or hazardous condition will occur with all the DC output connectors disconnected from the load. The power supply may latch into the shutdown state.
Environmental
Operating Temperature: -10º to +50ºC (Ambient air)
Storage Temperature: -40º to +85ºC
Operating Humidity: 10% to 90% RH, Non-condensing
Storage Humidity: 5% to 95% RH, Non-condensing
Operating Altitude: Sea-level to 16,000 ft.
Conducted & Radiated EMI: Designed to meet EN55022 Level B, CISPR 22 Class B, FCC Part J Class B
Immunity: Designed to CE: EN55024:2010/IEC61000
Safety
Safety Agency Certifications: cUL (cTUVus): UL62368-1, TUV: EN62386-1, CB: IEC62368-1
Cooling
Internally Cooled: A single 80mm (Delta) high reliable DC fan
Mechanical
Enclosure: Metal chassis, enclosure, non-finish.
Outline Dimensions: 150mm X 140mm X 86mm (W X L X H) – not including I/O connectors
Weight: 3.0lbs. (1360 grams)
I/O Cable & Connectors: Standard ATX configuration (Custom cabling/connectors available)
Optional Features, Controls or Alarms
PWR_OK (Power Good Signal)
PS_ON (DC Soft Start)
+5Vsb (Standby Voltage)
Note
Product specifications subject to change without notice
