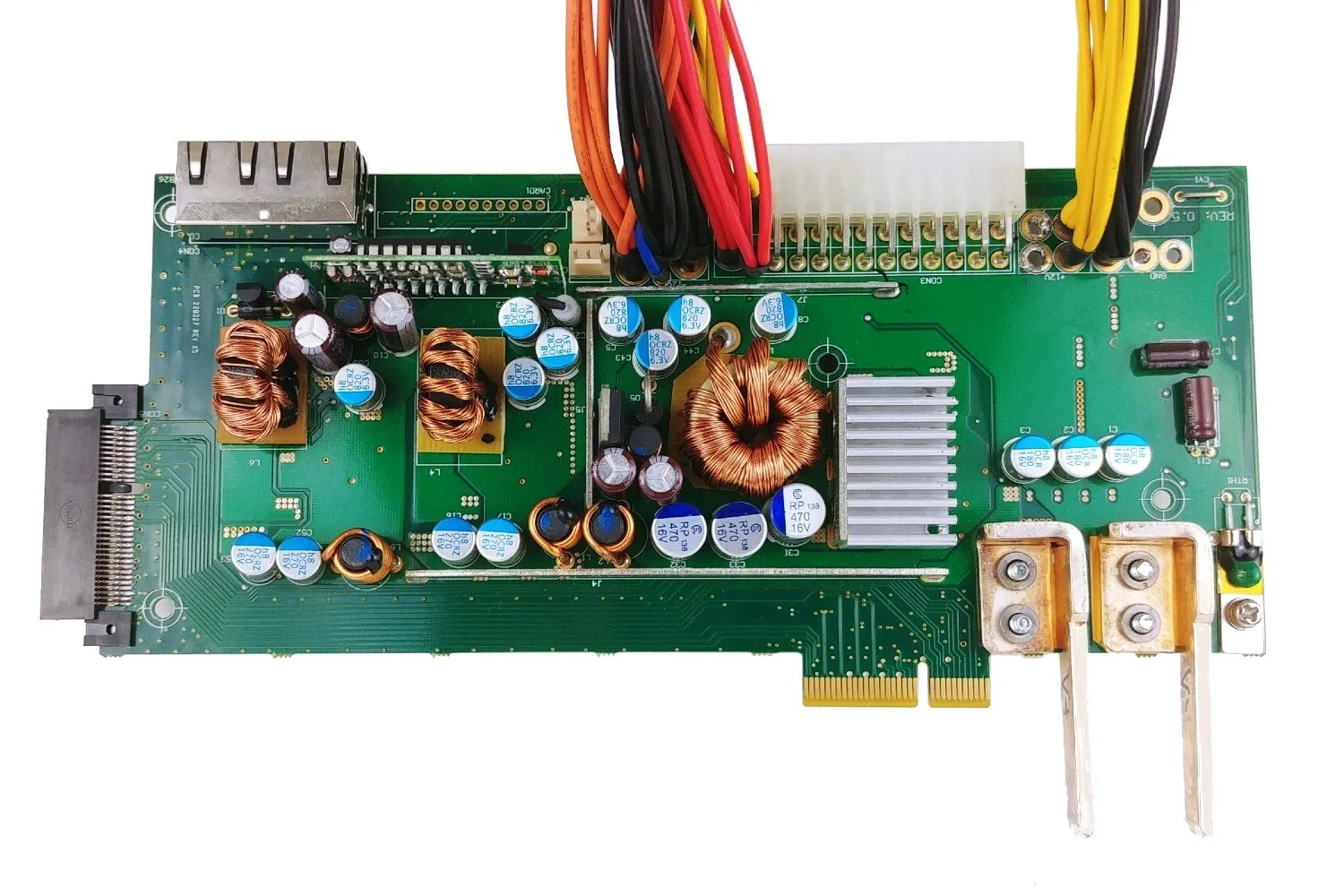

Custom DC Input, ATX Blade Power Supply
Application: Rack server system utilizing a 12V distributed power architecture requiring a custom dc input, ATX power supply in a single “blade” configuration to provide ATX voltages to the SBC.
Project Abstract: Design a hot swappable, open PCB product that will connect to a 12V distributed bus providing 100 amps of pass-through current and an output section to convert the 12V to regulated ATX voltages -5V, 3.3V, -12V and 5V standby. Incorporated standard ATX control/signal functions with a RS485 communications.
Key Product Highlights:·
Input: 12VdcMain Output: 12Vdc @ 100 amps, pass throughATX
Outputs: 3.3V, 5V, -12V and 5V Stby
ATX Combined Output Power: 250 watts
Operating Temp: 0° to +50°C, Convection Cooled
Incorporate edge card for RS485 communications
EMC Immunity: Designed to IEC61000
Output Cabling: 24pin ATX (Optional cabling & connector options)
Size: 1.3” x 3.5” x 8.5”
