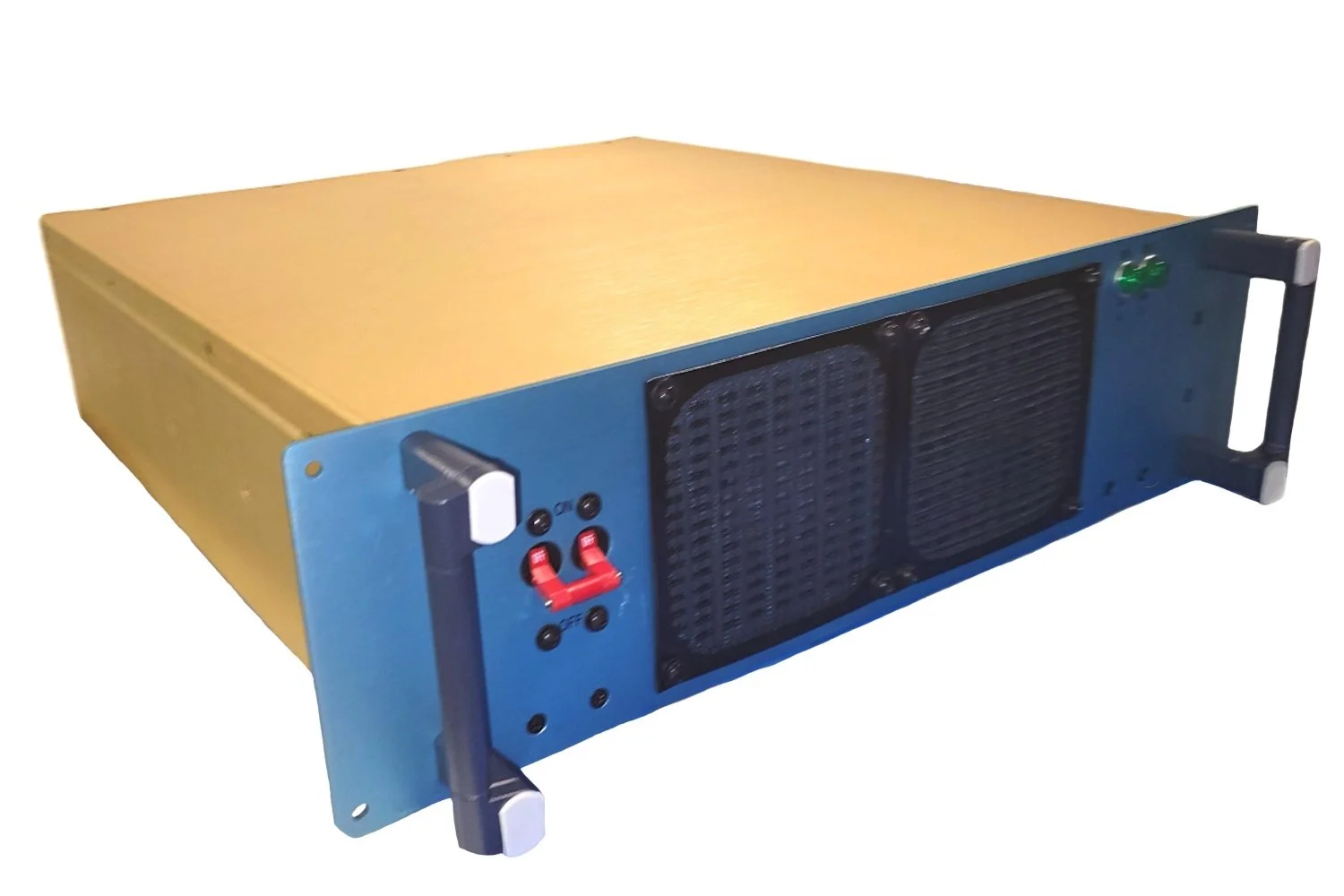

4000 Watt Custom Power Supply Overview
Application: Military RF equipment requiring a ruggedized rack mount power supply.
Project Abstract: The initial inquiry was for a two, 2000W Mil-Grade power supply that would be used in a platform to power electronics for a RF system. The customer wanted a turn-key system that would operate in a higher temp environment and would meet MIL-STDs applicable to power systems. It was decided that a 19” rack mount chassis supplying 4KW or power would be the solution to mount and power up need. We used existing 2KW Mil-Grade power supplies mounted on a heatsink inside a 19” chassis with fans would be the least cost approach to a complete system. The customer could mount it in their existing rack and cable to some D38999 I/O connectors for easy hookup.
Key Product Highlights:
• Designed to Meet MIL-STD-461/702/810
• Input: 90-240Vac, 50/60Hz, Single Phase
• 19” Rack Mount Chassis
• Dual, Isolated, 28Vdc Outputs
• Ambient Operating Temp Range: 0° to +55°C
• Mil-Circular D3899 I/O Connectors
